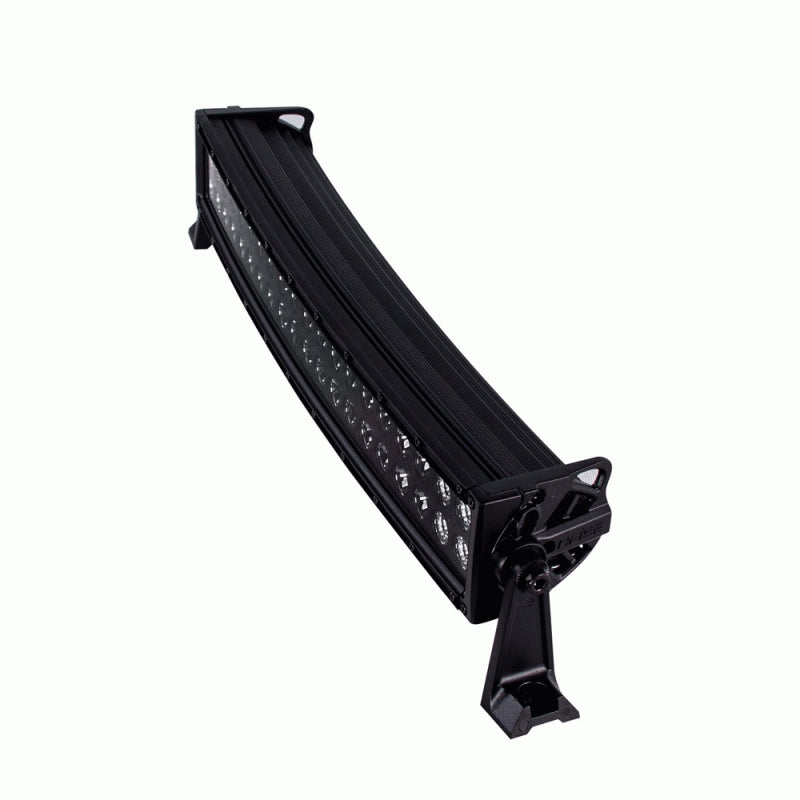

HEISE 22" DUAL ROW BLACKOUT CURVED 9600 LUMENS

HEISE 22" DUAL ROW BLACKOUT CURVED 9600 LUMENS

HE-BDRC22

Regular price $245.00 Sale

SPECS
Input Voltage: 10-30V DC
Wattage: 120W (40-3W CREE LEDs)
Raw Lumens: 9600
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 21.50in
Brackets turned outward – 23.75in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: 6.3 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
